IOC4Mk2 600-043
商品の詳細
| ブランド | 他の | モジュール番号 | IOC4Mk2 |
|---|---|---|---|
| 注文番号 | 600-043 | 販売価格 | 1200ドル |
| 状態 | 在庫あり | 起源 | 中国 |
| リードタイム | 3～5営業日 | ワレンティ | 1年 |
| 重さ | 1KG |
製品の説明

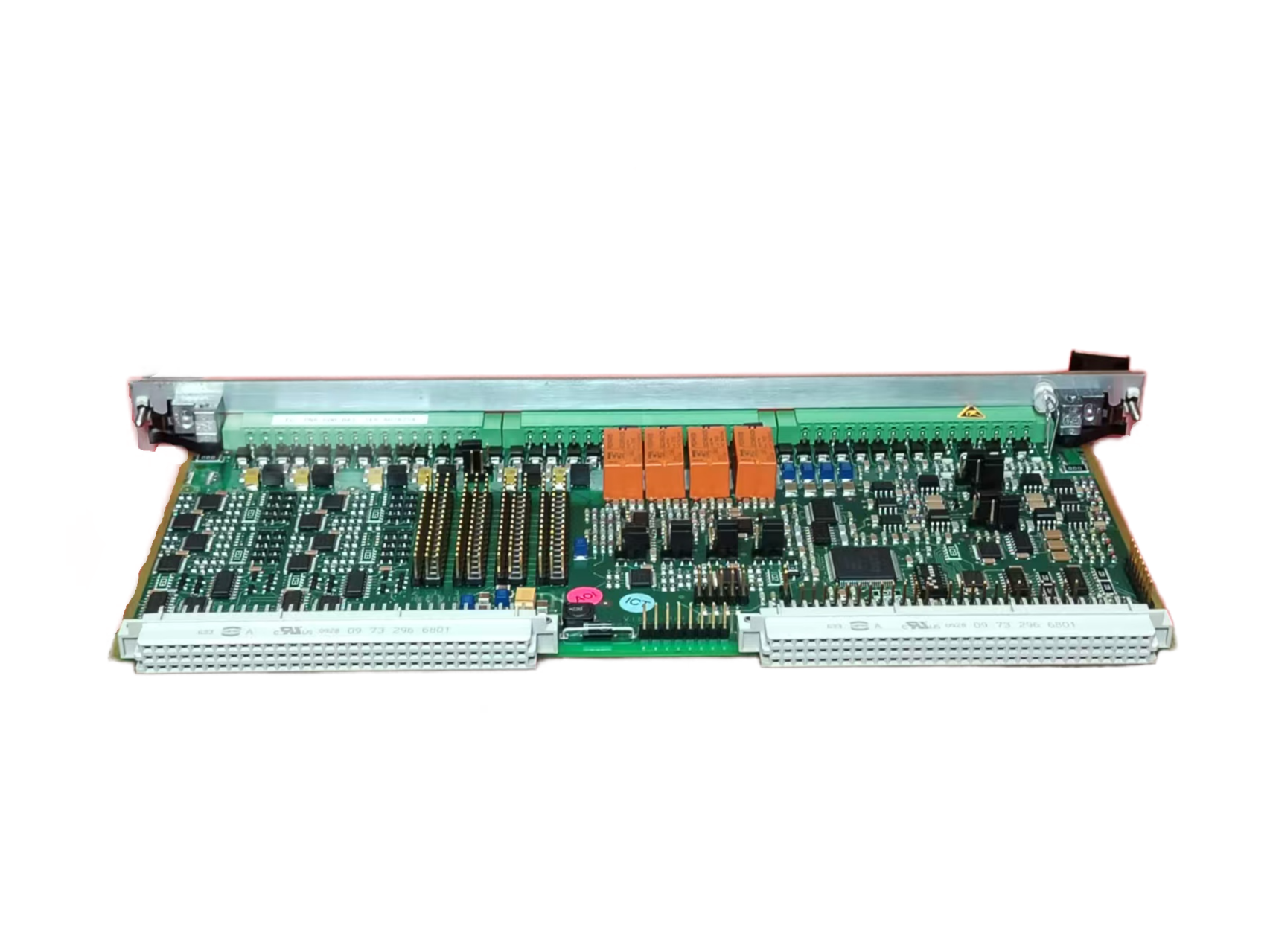

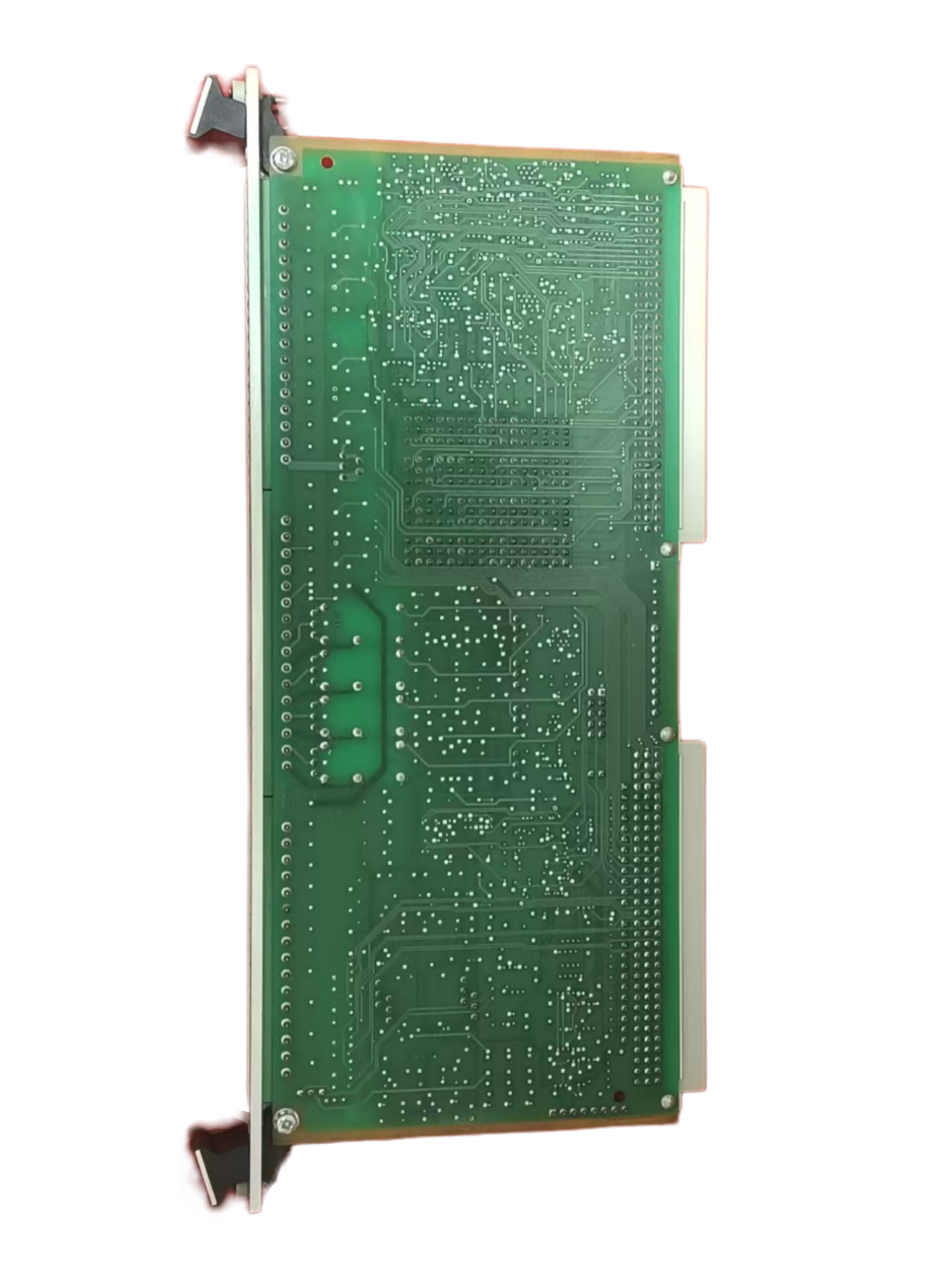

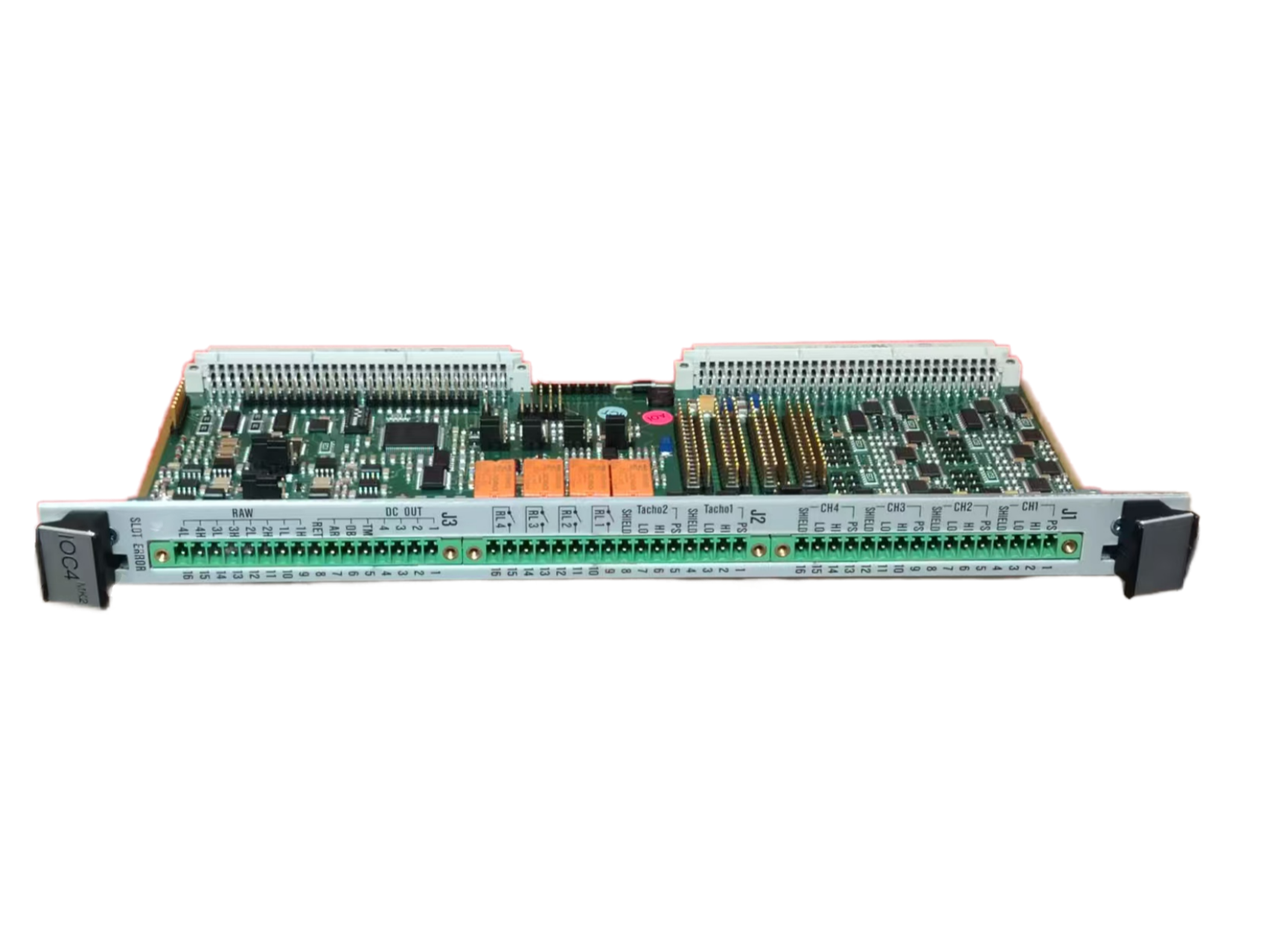

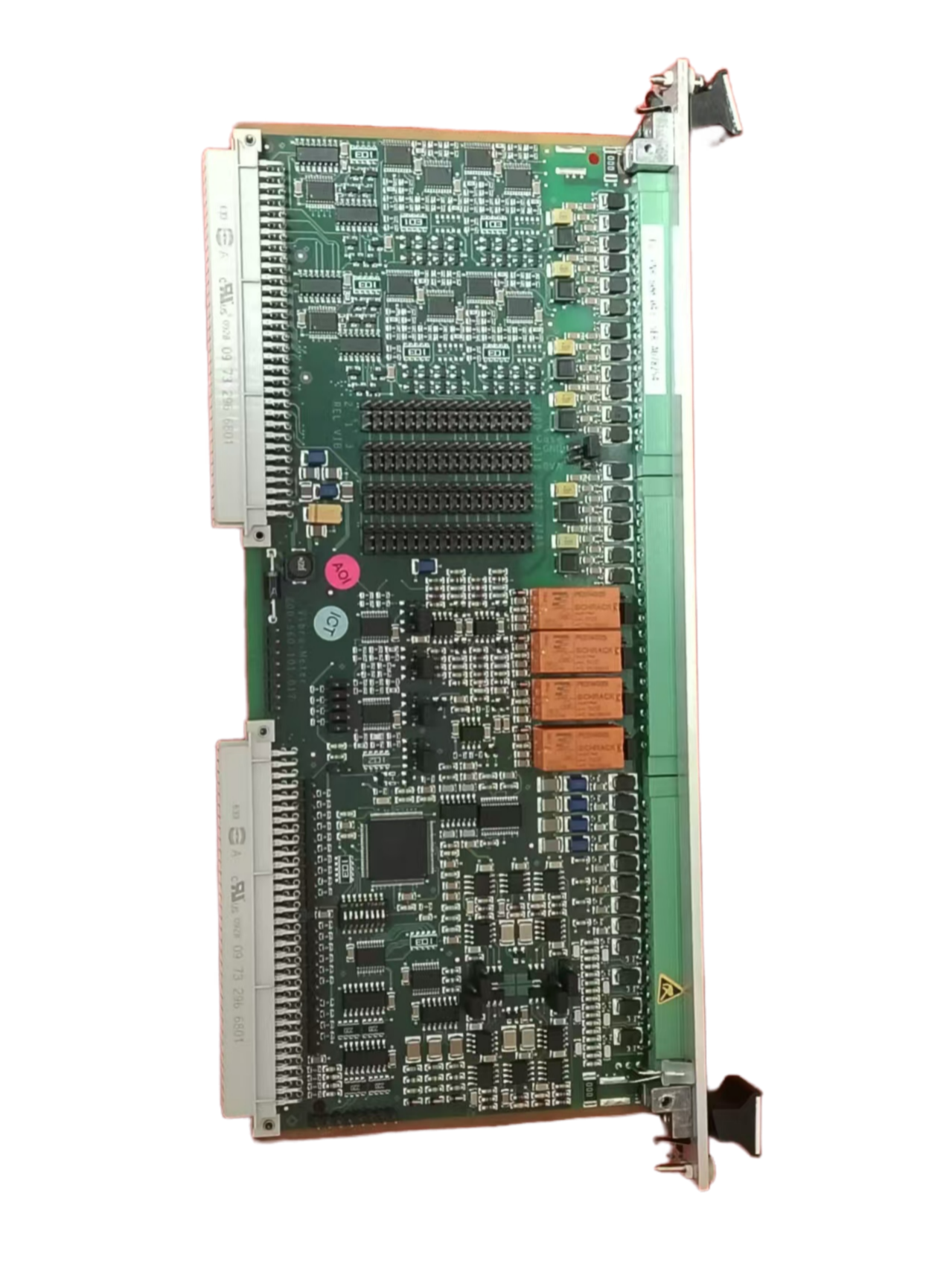

IOC4Mk2 600-043
Product Overview
The IOC4Mk2 600-043 is a standard input/output module designed to be paired with the MPC4Mk2 processing module to form a complete mechanical protection and condition monitoring channel.
This module is suitable for most industrial applications, supporting 4 dynamic channels and 2 auxiliary channels (configurable as tachometers or DC inputs), and provides 4 user-configurable relay outputs, 4 analog outputs (4-20mA or 0-10V), and 1 status relay.
This module offers high precision, high reliability, and strong scalability. It is primarily used for the acquisition and output control of signals such as vibration, speed, displacement, pressure, and temperature from rotating machinery.
It is suitable for rotating machinery protection and condition monitoring in industries such as power generation, petrochemicals, and metallurgy. Its flexible I/O configuration, robust alarm logic, and software ecosystem support make it an ideal core monitoring component for industrial environments.
Key Features
| Operating Temperature | -20°C to +65°C |
|---|---|
| Storage Temperature | -40°C to +85°C |
| Humidity | 0% to 95% relative humidity (non-condensing) |
| Altitude | Up to 2000 meters (Standard Version) |
| Powerful Output Capabilities |
|
| High Integration | A single-slot-width module installed at the rear of the VM600Mk2 rack, paired one-to-one with the MPC4Mk2 processing module. |
| Hot-swap Support | The standard version supports hot-swapping and automatic reconfiguration (for non-safety applications). |
Technical Specifications
| Brand Name | Other |
|---|---|
| Model | IOC4Mk2 |
| Ordering Information | 600-043 |
| Catalog | Vibration Monitoring |
| Gross Weight | 2.2 lbs / 35.2 oz / 1kg |
| Packing Size | 16cm x 16cm x 12cm |
| Country of Origin | China |
| HS Code | 8537101190 |
| Lead Time | In Stock |
| Shipping Port | Xiamen |
| Payment | T/T |
| Sales Price | $1200 |
| Warranty | 12 months |
| Courier Partners | DHL, UPS, TNT, FedEx and EMS |
Ordering Information
Different versions of the IOC4Mk2 input/output module:
- Standard version 600-043
- Standard version, with conformal coating 600-043L
Note: The IOC4Mk2 ordering number PNR 600-043 corresponds to the underlying module version 620-024-100-1Hh, where "Hh" represents the hardware versions ("H" increments are for major modifications that can affect product interchangeability, "h" increments are for minor modifications that have no effect on interchangeability).
Product Selection and Pairing
| Module Type | Part Number | Description |
|---|---|---|
| Processing Module | MPC4Mk2 (600-041 / 603-041) | Standard version, supports mechanical protection (default) and optional condition monitoring (license required) |
| Rack | ABE04x (6U) / ABE056 (1U) | System rack or compact rack |
| Relay Expansion | RLC16Mk2 (Standard version) | Provides additional relay outputs |
| Control and Communication | CPUMMk2 + IOCNMk2 | For fieldbus communication, data aggregation, alarm reset, etc. |
| Software | VibroSight Protect / Capture | Configure and operate mechanical protection and condition monitoring functions |
Frequently Asked Questions
Can the IOC4Mk2 600-043 be used on its own?
No. This module is a pure I/O unit and must be paired one-to-one with the MPC4Mk2 processing module to form a complete system. The two modules must be installed in corresponding slots at the front and rear of the rack, respectively; neither can be omitted.
What is the difference between 600-043 and 600-043L, and how should I choose between them?
The two models have identical hardware specifications; the difference lies in the protective coating.
600-043: Standard bare panel, suitable for conventional indoor server rooms and electrical distribution rooms with dry conditions, low dust levels, and no corrosive gases.
600-043L: Features a triple-proof coating that provides protection against moisture, dust, and mild corrosion; recommended for harsh environments such as chemical plants, mines, outdoor cabinets, and high-humidity facilities.
Which racks are compatible with the IOC4Mk2 600-043?
It is fully compatible with the entire VM600Mk2 rack series: the 6U standard rack (ABE04x) and the 1U slim rack (ABE056). It is also compatible with older VM600 racks. A single module occupies one standard rack slot.
What is the warranty period?
Standard industrial warranty: 12 months; with proper installation and no overloading, the product has a service life of 5-10 years.
