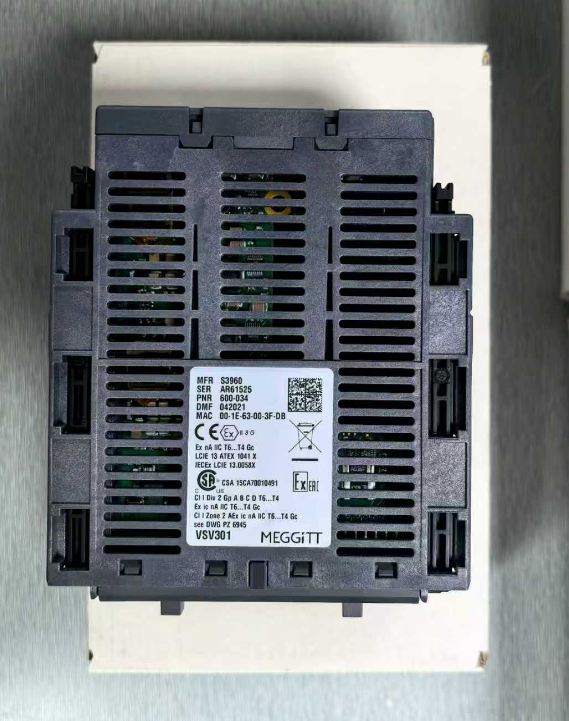

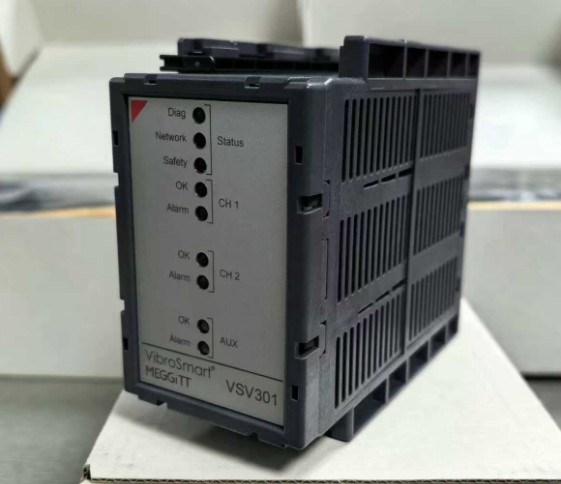

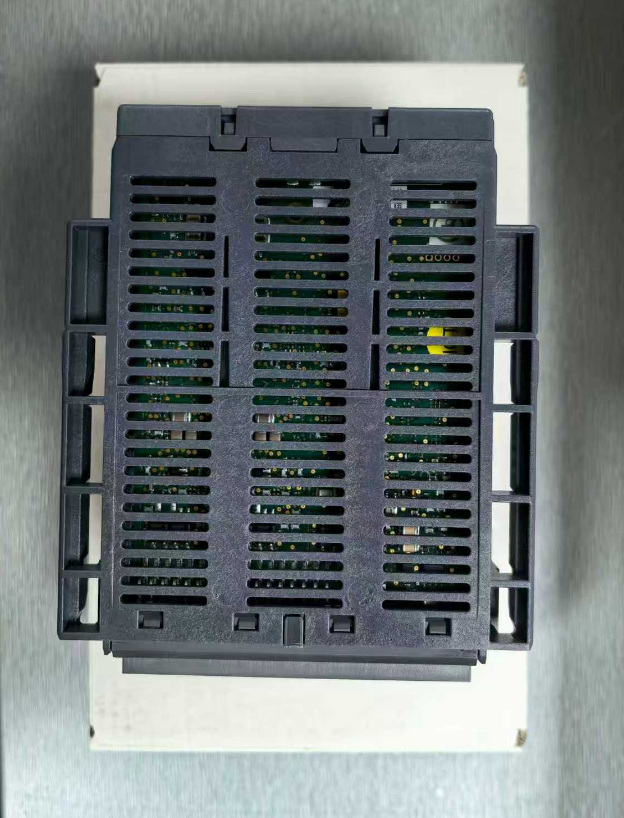

VSV301 600-034 Monitoring Module DIN Rail Mounting
商品の詳細
| ブランド | 他の | モジュール番号 | VSV301 |
|---|---|---|---|
| 注文番号 | 600-034 | 販売価格 | 5000ドル |
| 状態 | 在庫あり | 起源 | 中国 |
| リードタイム | 3～5営業日 | ワレンティ | 1年 |
| 重さ | 1KG |
製品の説明
VSV301 600-034 Monitoring Module DIN Rail Mounting
The VSV301 600-034 is a high-performance, highly reliable vibration monitoring module designed for mechanical protection and condition monitoring in harsh industrial environments.
Key Features
- 2 individually configurable dynamic input channels with up to 19 kHz bandwidth
- 1 auxiliary input channel configurable as either a tachometer or a DC input
- Wide Input Range: Input voltage 9.4-36.0 VDC, compatible with 12V and 24V batteries or DC bus
- Spectrum analyzer (FFT) up to 1600 lines every 100 ms
- Up to 4 alarms per processed output, with hysteresis and time delay
- Analog outputs: 2 local outputs configurable as 4-20 mA or ±5 V
Application Configurations
| Use Cases | Recommended Configuration | Notes |
|---|---|---|
| Single-Turbine Vibration Monitoring | VSV301 + VSB300 + VSA002 | Directly acquire vibration and speed signals and output them to a PLC or DCS |
| Condition Monitoring for Multiple Units | Multiple VSV301 + VSN010 + VibroSight | Build a distributed monitoring network and perform centralized analysis |
| Danger Zone | VSV301 + IP54 Cabinet + Ex-certified Power Supply | Meet explosion-proof requirements |
| Long-distance signal transmission | VSV301 + VSA301 Amplifier | The buffered output can be extended up to 500 meters |
| High-Precision Phase Analysis | VSV301 + Tachometer Input + PTP Synchronization | Achieve <1 μs synchronization between modules |
When used in conjunction with the VSB300 terminal block, this module is suitable for condition monitoring and mechanical protection of rotating machinery, such as gas turbines, steam turbines, hydro turbines, and various auxiliary equipment.
This model features two independent, configurable dynamic input channels (with a bandwidth of up to 19 kHz) and one auxiliary channel (configurable as a tachometer or DC input). It supports synchronous sampling, real-time data processing, and alarm logic evaluation, making it suitable for harsh industrial environments (such as Ex Zone 2 hazardous areas and high-temperature environments ranging from -20°C to 70°C).
Product Specifications
Brand Name Other
Model VSV301
Ordering Information 600-034
Catalog Vibration Monitoring
Gross Weight 2.2 lbs / 35.2 oz / 1kg
Packing Size 16cm x 16 cm x 12 cm
Country of Origin China
HS Code 8537101190
Lead Time In Stock
Shipping Port Xiamen
Payment T/T
Sales Price $5000
Warranty 12 months
Lead Time 3-5 work days
Courier Partners DHL, UPS, TNT, FedEx and EMS
