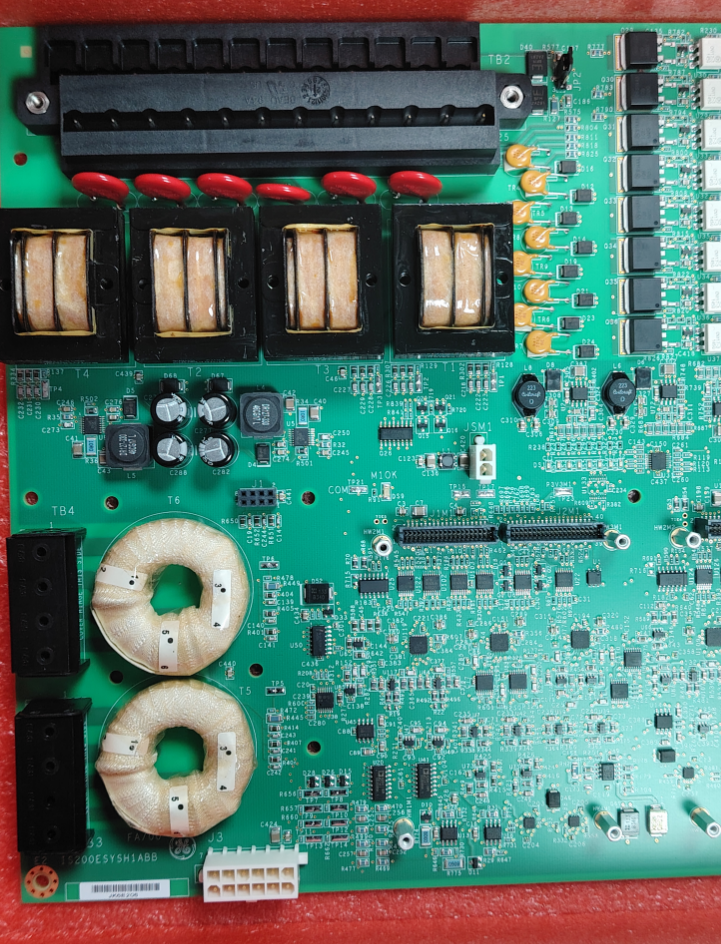

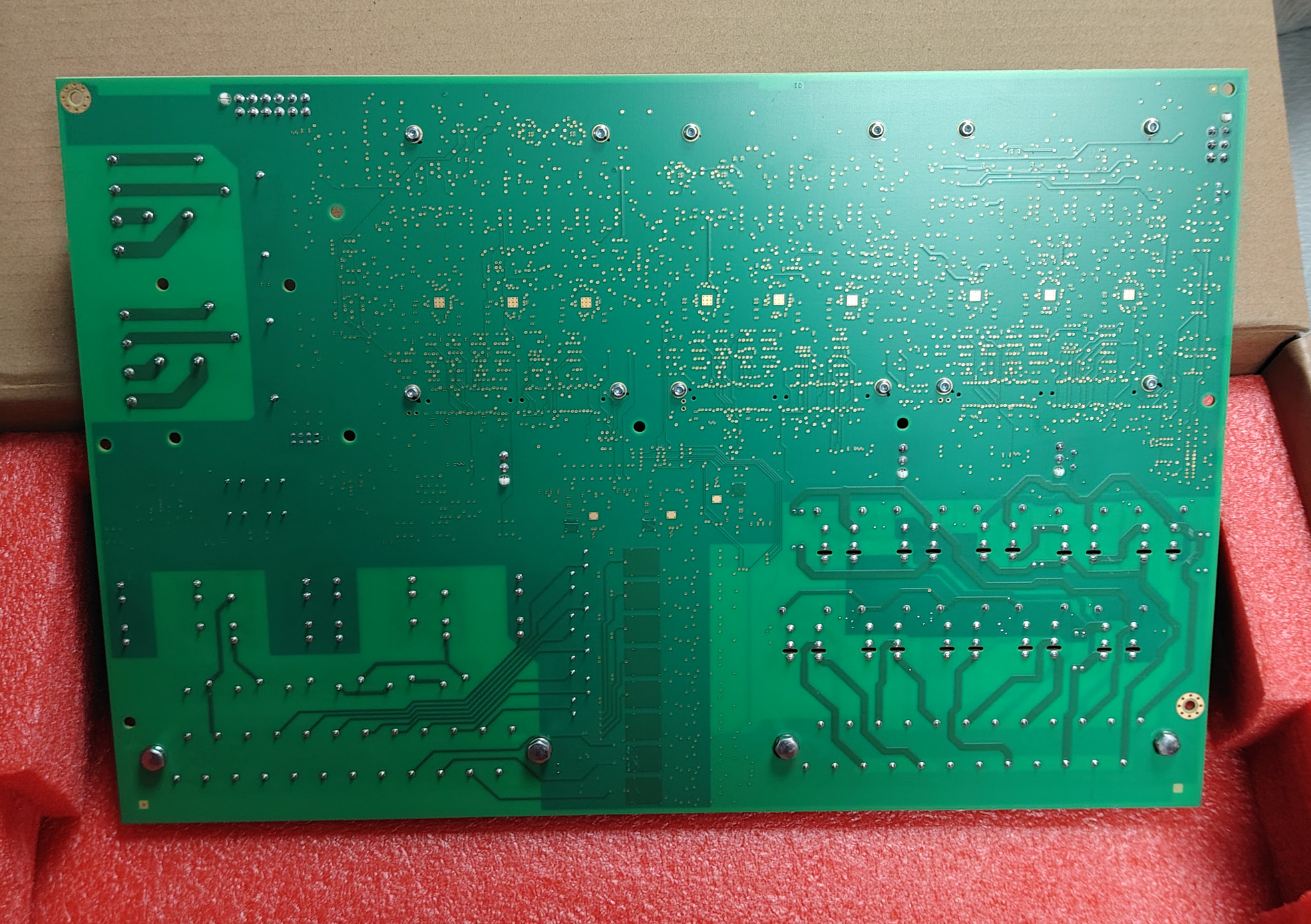

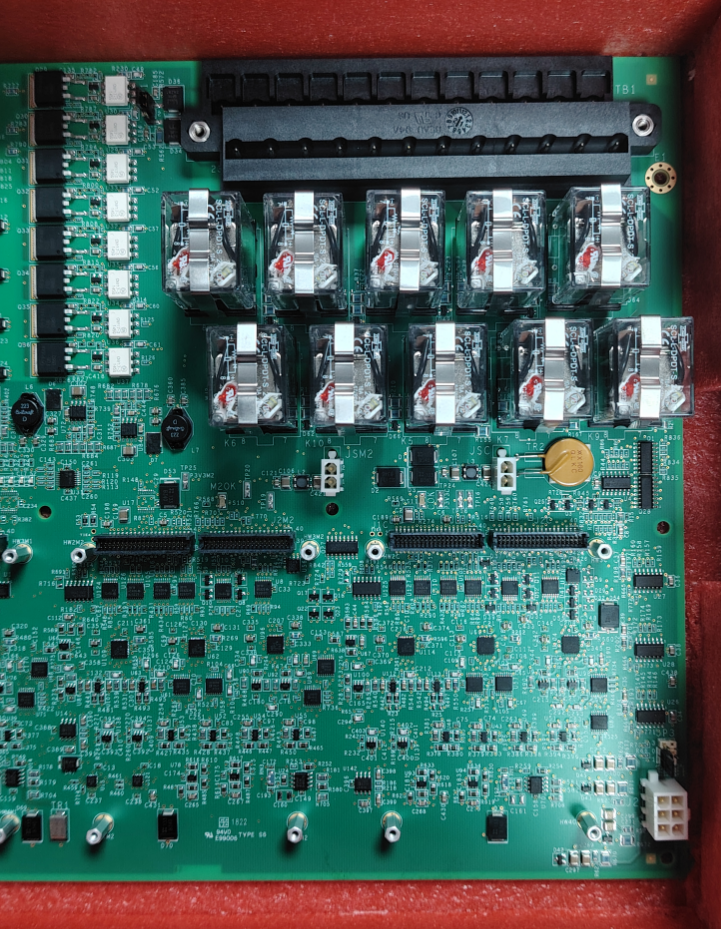

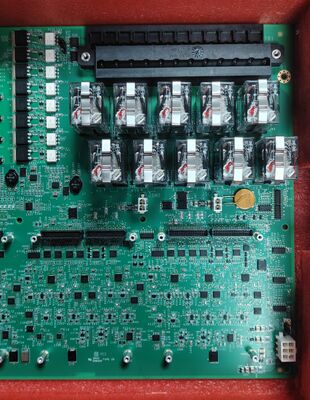

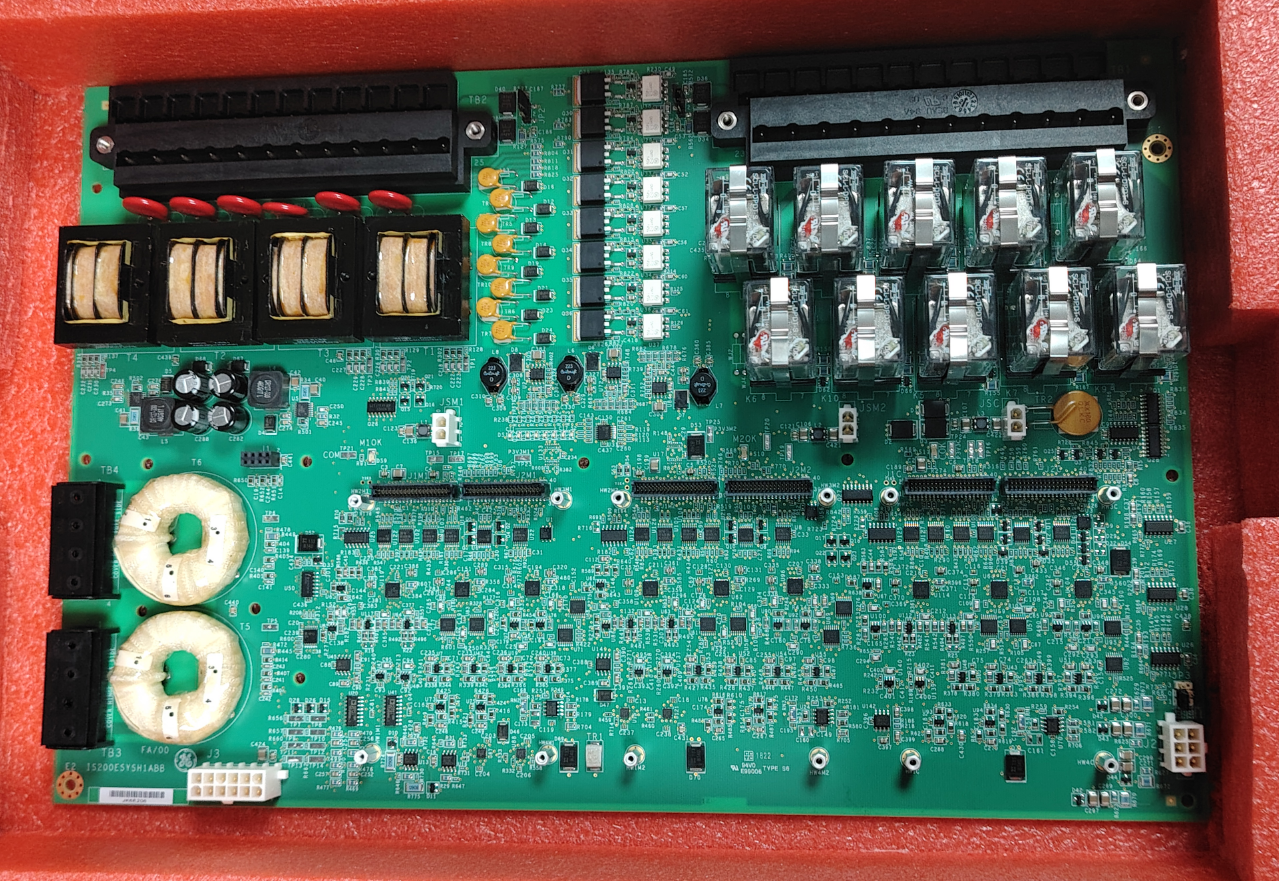

IS200ESYSH1A GE EX2100e System Interface I/O Board
| 起源の場所 | アメリカ合衆国 |
|---|---|
| ブランド名 | GE |
| 証明 | Certificate of Origin |
| モデル番号 | IS200ESYSH1A |
| 文書 | Mark VIe and Mark VIeS.pdf |
| 最小注文数量 | 1個 |
| 価格 | $6000 |
| パッケージの詳細 | オリジナルボックス包装 |
| 受渡し時間 | 5～7日 |
| 支払条件 | T/T |
| 供給の能力 | 1～99個 / 3～5日 |
商品の詳細
| ブランド | GE | モジュール番号 | IS200ESYSH1A |
|---|---|---|---|
| カタログ | Ex2100e | 販売価格 | $6000 |
| 状態 | 在庫あり | 起源 | アメリカ合衆国 |
| リードタイム | 3～5営業日 | ワレンティ | 1年 |
| 重さ | 1KG |
製品の説明
IS200ESYSH1A GE EX2100e System Interface I/O Board
The IS200ESYSH1A is a system interface board designed by General Electric (GE) for the EX2100e excitation control system. As a core interface component, this model effectively connects the excitation controller to field devices such as generator PT/CTs, DCS, and trip circuits, making it an indispensable key interface component in large gas turbine excitation systems.
Technical Specifications
- Board Description: Excitation Control System I/O Interface Module
- Board Type: TMR System I/O, Generator Power Sampling Interface Board
- Group: H1
- Operating temperature: -40°C to +70°C
- Ambient humidity: 5% to 95% RH (non-condensing)
- Sub-board Interface: Supports HSSL/HSLA expansion terminal boards
Installation and Maintenance Precautions
- The polarity of the PT/CT connections must be correct; reverse connections will result in measurement errors and may even trigger false protection trips.
- The module supports the EX2100e system; interface definitions may differ from those of earlier EX2100 systems. Verify that the system versions are compatible before installation.
- It is recommended to store the board in an anti-static storage case and to handle and use it under the recommended environmental conditions.
Case Study
At an industrial park, the excitation cabinet of a private power plant was installed near the generator unit. Strong electromagnetic interference at the site caused frequent data packet loss in the older-generation communication cards. Subsequently, the industrial park installed the IS200ESYSH1A. Thanks to its triple electrical isolation design (≥1.5 kVdc) and built-in isolation transformer, this card successfully blocked electromagnetic crosstalk, ensuring stable data transmission.
Product Details
| Brand Name | General Electric |
| Model | IS200ESYSH1A |
| Catalog | EX2100e |
| Gross Weight/Shipping Weight | 2.2 lbs / 35.2 oz / 1kg |
| Packing Size | 16cm x 16 cm x 12 cm |
| Country of Origin | USA |
| HS Code | 8537101190 |
| Lead Time | In Stock |
| Shipping Port | Xiamen |
| Payment | T/T |
| Sales Price | $6000 |
| Warranty | 12 months |
| Lead Time | 3-5 work days |
| Courier Partners | DHL, UPS, TNT, FedEx and EMS |
