IPC704 244-704-000-042
商品の詳細
| ブランド | 他の | モジュール番号 | IPC704 |
|---|---|---|---|
| 注文番号 | 244-704-000-042 | 販売価格 | 2000ドル |
| 状態 | 在庫あり | 起源 | 中国 |
| リードタイム | 3～5営業日 | ワレンティ | 1年 |
| 重さ | 1KG |
製品の説明

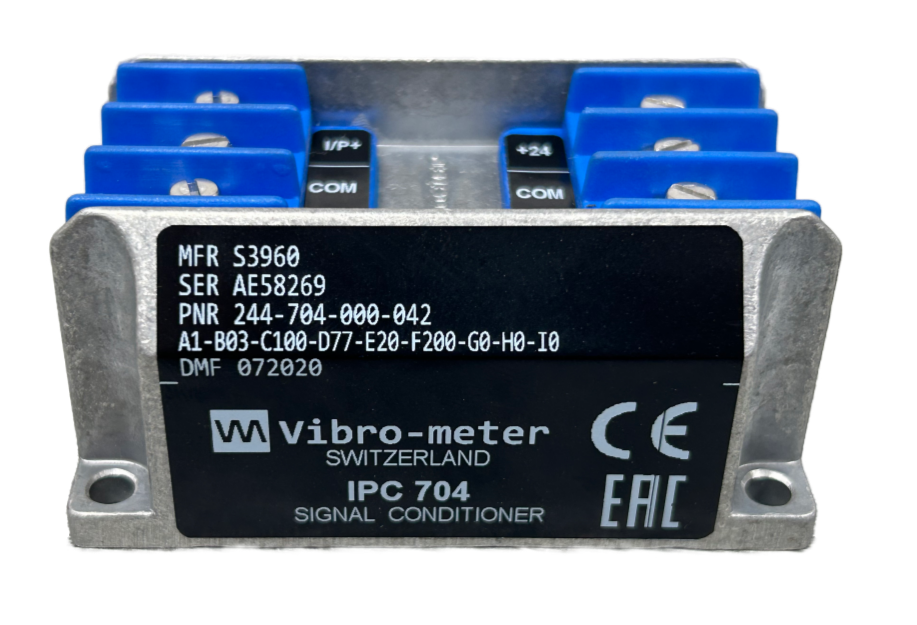

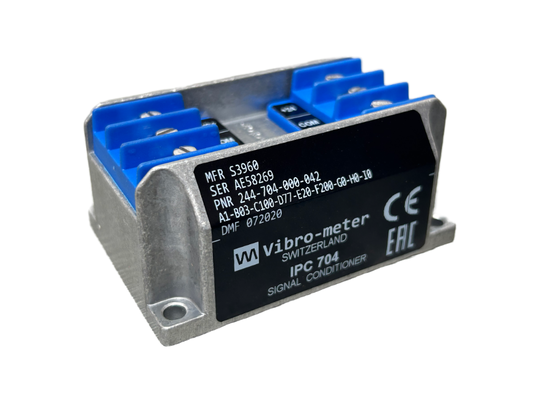

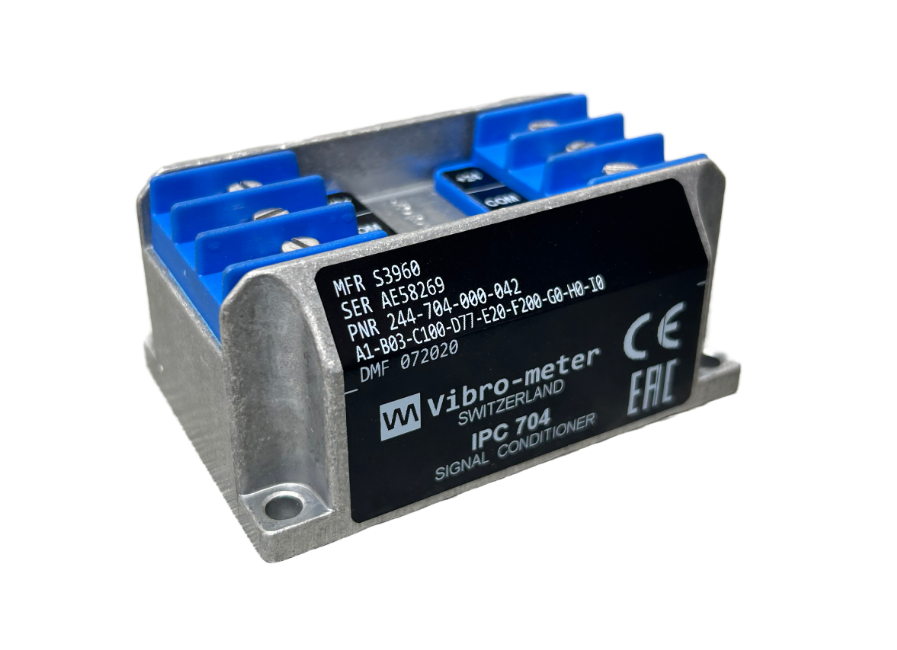

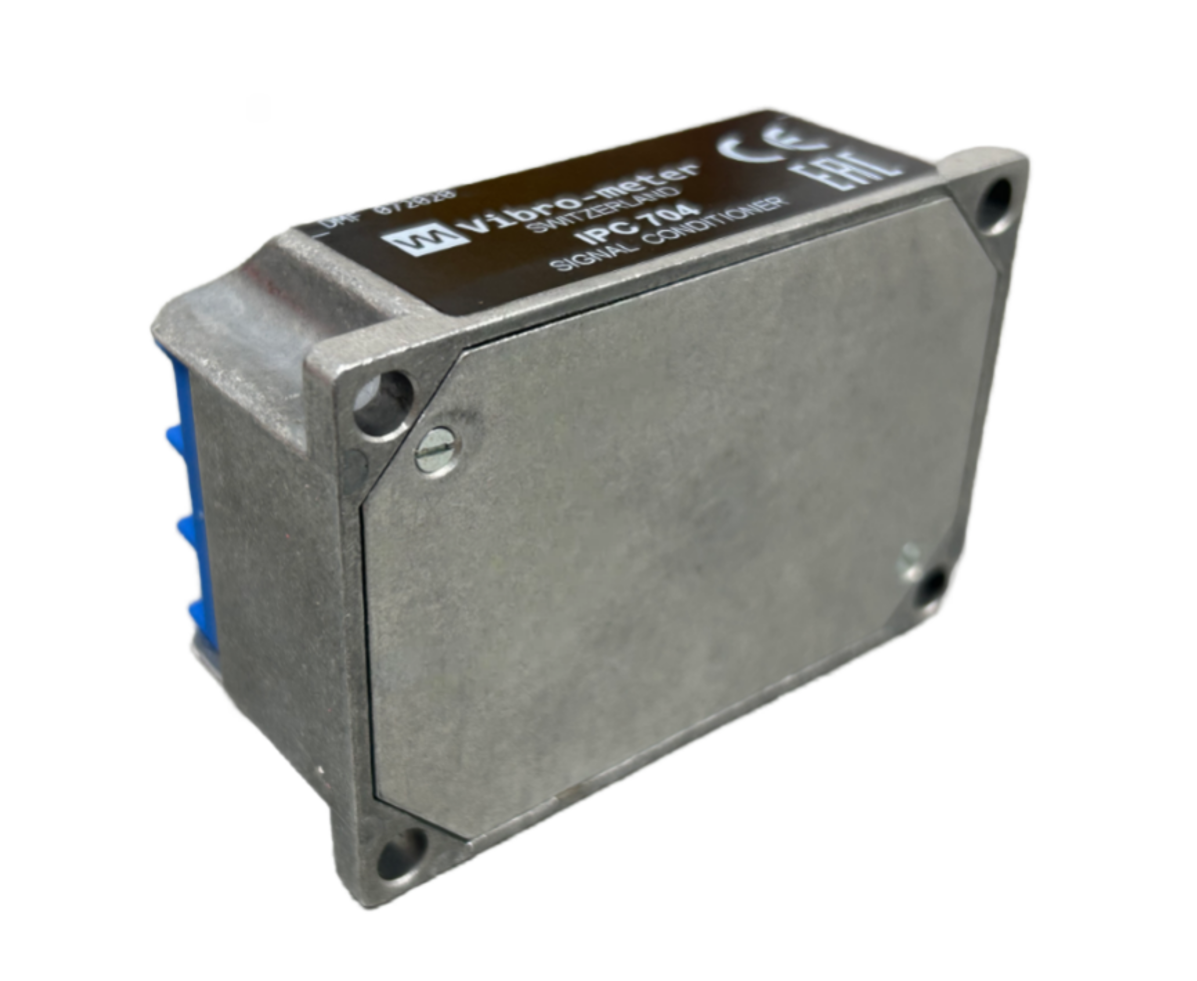

IPC704 244-704-000-042
Product Overview
The IPC704 244-704-000-042 is a high-performance signal conditioner designed to convert charge signals from piezoelectric transducers into standard, interference-resistant current or voltage signals.
| Specification | Details |
|---|---|
| Brand Name | Other |
| Model | IPC704 |
| Ordering Information | 244-704-000-042 |
| Catalog | Vibration Monitoring |
| Gross Weight | 2.2 lbs / 35.2 oz / 1kg |
| Packing Size | 16cm x 16cm x 12cm |
| Country of Origin | China |
| HS Code | 8537101190 |
| Lead Time | In Stock |
| Shipping Port | Xiamen |
| Payment | T/T |
| Sales Price | $2000 |
| Warranty | 12 months |
| Courier Partners | DHL, UPS, TNT, FedEx and EMS |
Product Description
This signal conditioner eliminates the need for expensive low-noise cables by providing stable and reliable signal support for industrial environments. It reduces costs and improves efficiency, enabling businesses to achieve high returns at low cost.
Technical Features
Frequency range: 0.5 Hz to 20 kHz
Optional integrator: Outputs speed signal
Input dynamic range: Up to 100,000 pC (peak)
Linearity error: ≤ 0.2%
Temperature stability: Typical value 100 ppm/°C
Operating Temperature: Complies with IEC 60068-2
Protection Rating: Optional IP66 industrial enclosure
Vibration and Shock Resistance: Complies with IEC 60068-2-26 and -27
Ordering and Model Selection
Ordering number: IPC704 244-704-000-042 A_-B__-C_-D_-E_-F_-G_-H_-I_
- A [Environment / Explosion-proof]: 1 = Standard; 2 = Ex i; 3 = Ex nA (Zone 2 only)
- B [Conversion units]: 01-02 Acceleration; 03-06 Velocity; 07-10 Pressure
- C [Input Sensitivity]: Matches sensor pC/g, pC/psi, pC/bar
- D [Output Sensitivity]: mV/mechanical unit or µA/mechanical unit
- E [High-Pass HP]: 0.5/1/2/5/10 Hz
- F [Low-Pass LP]: 200-20000 Hz
- G [Mounting Type]: 0 = Standard housing; 1 = IP66 industrial housing; 2 = DIN rail
- H [Input Cable Connector]: M16×1.5 series, bore diameter matches cable outer diameter
- I [Output Cable Connector]: Same series as H; H0 can only be paired with I0
Case Study
In a vibration monitoring project for gas turbine compressor units at a natural gas compression station, the IPC704 244-704-000-042 was used to convert charge signals from piezoelectric accelerometers into standard current signals. This enabled stable transmission over 600 meters within an explosion-proof zone, allowing precise monitoring of bearing and rotor failures to ensure safe and continuous operation.
