RPS6U 200-582-200-013
商品の詳細
| モジュール番号 | RPS6U | 注文番号 | 200-582-200-013 |
|---|---|---|---|
| 状態 | 在庫あり | 重さ | 1KG |
| リードタイム | 3～5営業日 | ブランド | 他の |
| 起源 | 中国 | 販売価格 | 3800ドル |
| ワレンティ | 1年 |
製品の説明

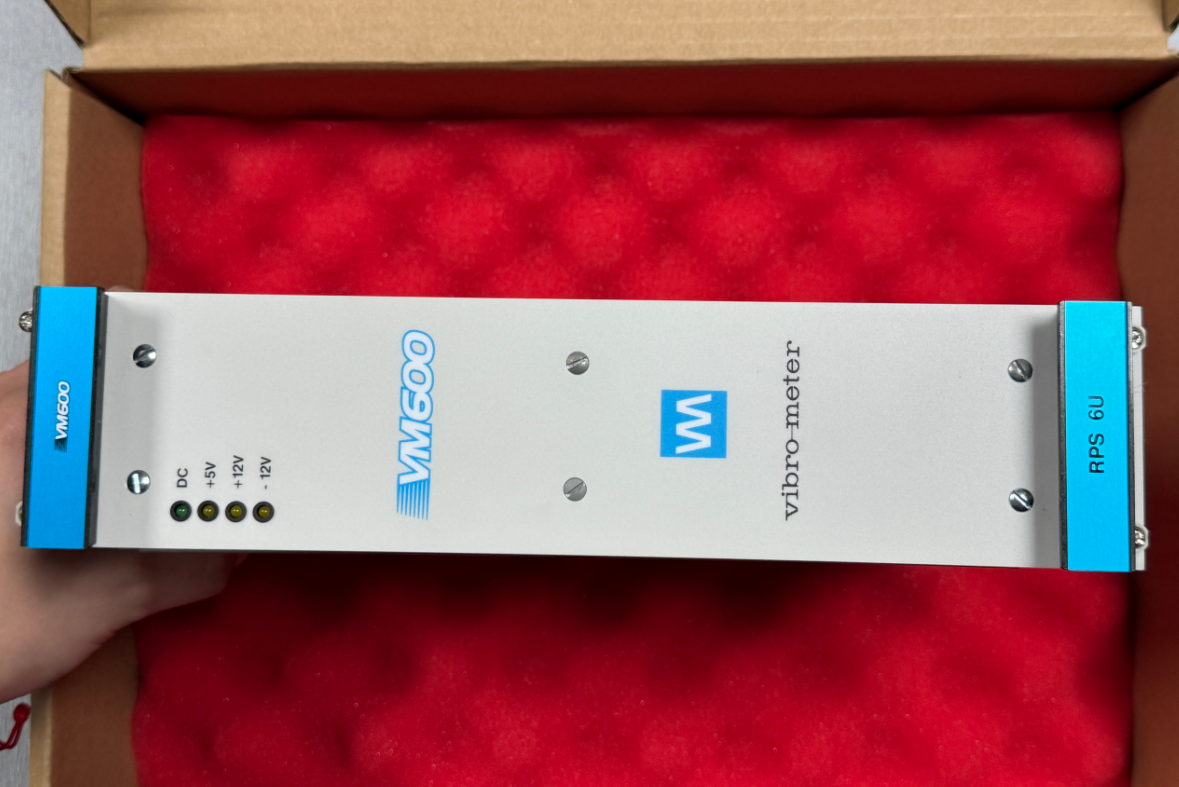

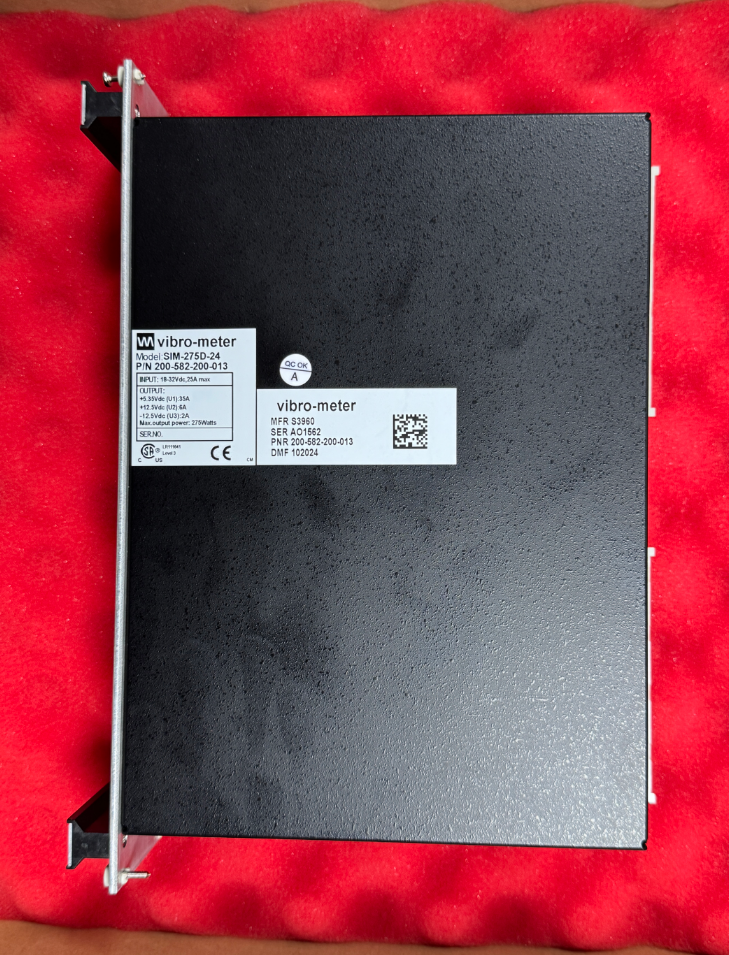

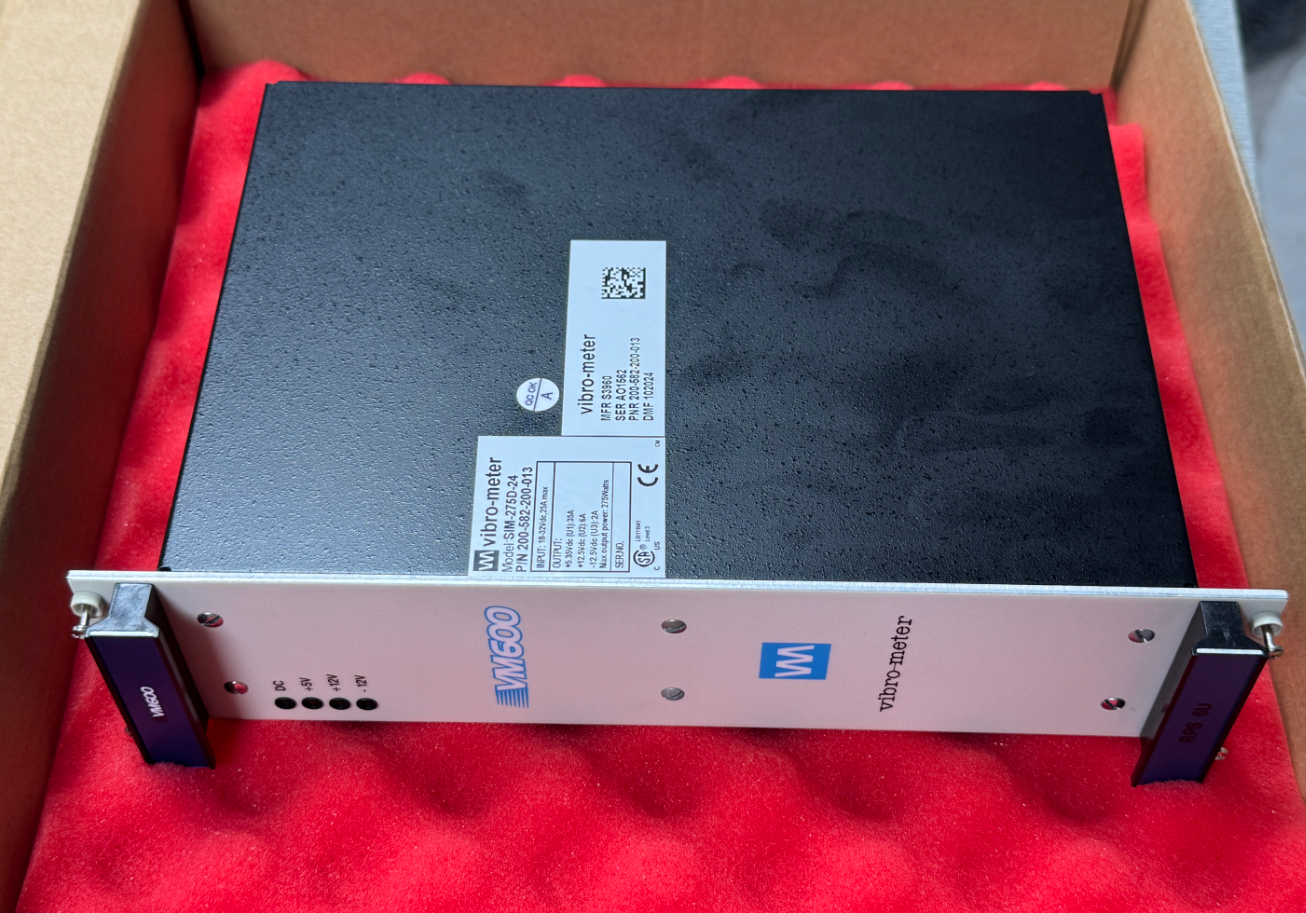

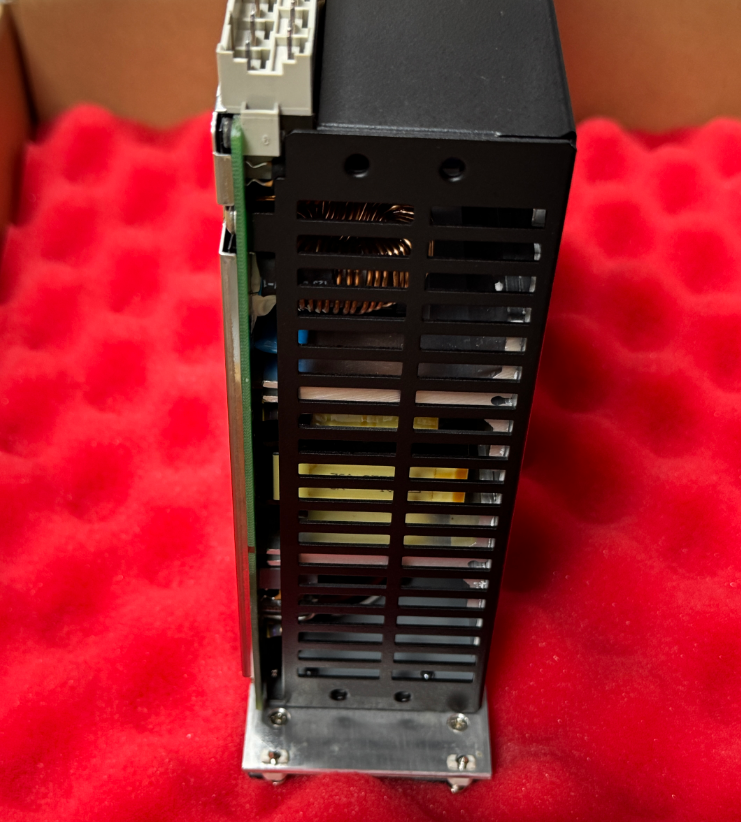

RPS6U 200-582-200-013 Rack Power Supply
Product Overview
The RPS6U 200-582-200-013 is a rack-mounted power supply module designed specifically for mechanical protection systems and condition and performance monitoring systems. This power supply serves as a critical power supply unit within a complete monitoring system.

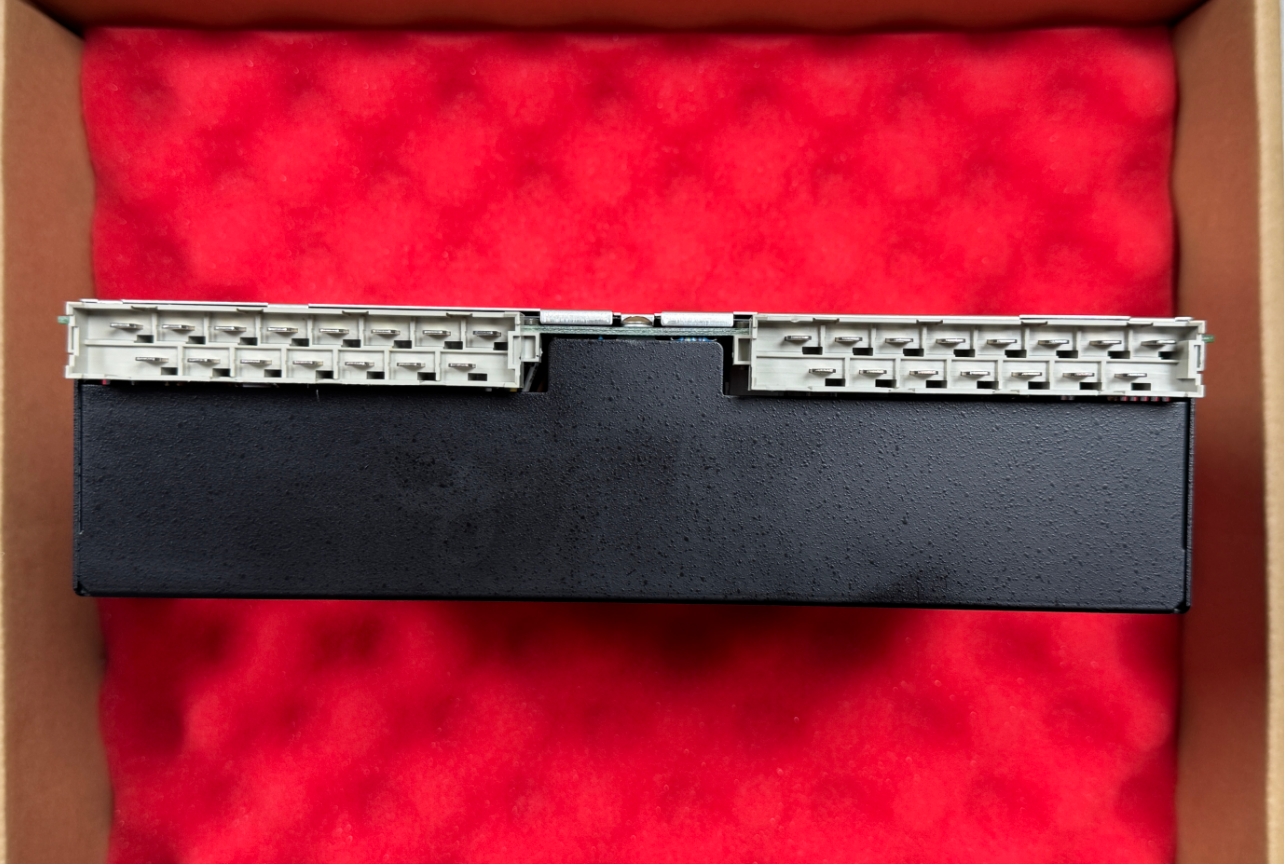

This model belongs to the 24 DC input series. It is compatible with standard 19-inch 6U ABE04x racks, mounts at the front of the rack, and connects to the rack backplane's VME bus via dual high-current DIN41612 H15 connectors on the rear, providing a unified power supply to all monitoring cards within the rack.
Key Features
- Rated Input Voltage: 24 V DC
- Input Voltage Range: 18 to 32 V DC
- Input Current: Max. 30 A
- Efficiency: Typical 83%
- Inrush Current: < 10 times the rated input current
- Rated Output Voltage: +5 VDC (max. 50 A), +12 VDC (max. 8 A), -12 VDC (max. 4 A)
- Maximum Output Power: 330 W
Series Model Comparison
| Model Order Number | Input Type | Applications |
|---|---|---|
| 200-582-200-013 | 24 VDC Input | On-site 24 V DC battery / DC UPS, power plant DC distribution panels, marine propulsion systems, oil and gas explosion-proof equipment rooms |
| 200-582-500-02h | AC Input | Standard 115/230 VAC utility power supply scenarios |
| 200-582-600-02h | 110 VDC Input |
Substations, industrial sites with high-power DC power grids |
Power Supply Configuration Options
1. Single RPS6U Basic Configuration
Applicable for: ambient temperatures ≤50°C; standard card counts; non-core auxiliary units; ensures stable operation of a fully equipped rack at the lowest cost.
2. Dual-Unit Redundant Power Supply Solution
Applicable to: TSI systems for critical units such as steam turbines, gas turbines, and large compressors; if either power supply fails, the other unit independently carries the entire load, ensuring uninterrupted monitoring and meeting mandatory safety protection requirements for the unit.
3. Dual Non-Redundant Capacity Expansion Solution
Applicable to: Machine rooms with temperatures >50°C and fully equipped with high-density cards (10 or more processing and relay cards); the dual power supplies share the load, offsetting power derating caused by high temperatures and ensuring sufficient output power at full load.
Case Study
Due to the high ambient temperature (nearly 50°C) on a certain offshore oil platform and the extremely high requirements for system availability, two RPS6U 200-582-200-013 power modules were selected to operate in a non-redundant configuration, jointly supplying power to a fully equipped rack to ensure sufficient power headroom even in high-temperature environments. The system has been operating stably for over two years without any power-related failures.
Product Specifications
| Brand Name | Other |
| Model | RPS6U |
| Ordering Information | 200-582-200-013 |
| Catalog | Rack Power Supplies |
| Gross Weight/Shipping Weight | 2.2 lbs / 35.2 oz / 1kg |
| Packing Size | 16cm x 16 cm x 12 cm |
| Country of Origin | China |
| HS Code | 8537101190 |
| Lead Time | In Stock |
| Shipping Port | Xiamen |
| Payment | T/T |
| Sales Price | $3800 |
| Warranty | 12 months |
| Lead Time | 3-5 work days |
| Courier Partners | DHL, UPS, TNT, FedEx and EMS |
Frequently Asked Questions
What is the input voltage range for the RPS6U 200-582-200-013?
This model is the 24V DC input version, with an input voltage range of 18 to 32 V DC.
Does the DC input version require external circuit protection?
Yes. The rear panel of the DC input version does not include electrical circuit protection; users must use an appropriately rated external circuit breaker or equivalent protective device.
Can a single RPS6U meet the power requirements of a fully equipped rack?
Yes. At an operating temperature of ≤50°C, a single RPS6U (330W) can meet the power requirements of all modules in a fully equipped rack.
What is the warranty period?
Standard industrial warranty: 12 months; with proper installation and no overloading, the product has a service life of 5-10 years.
