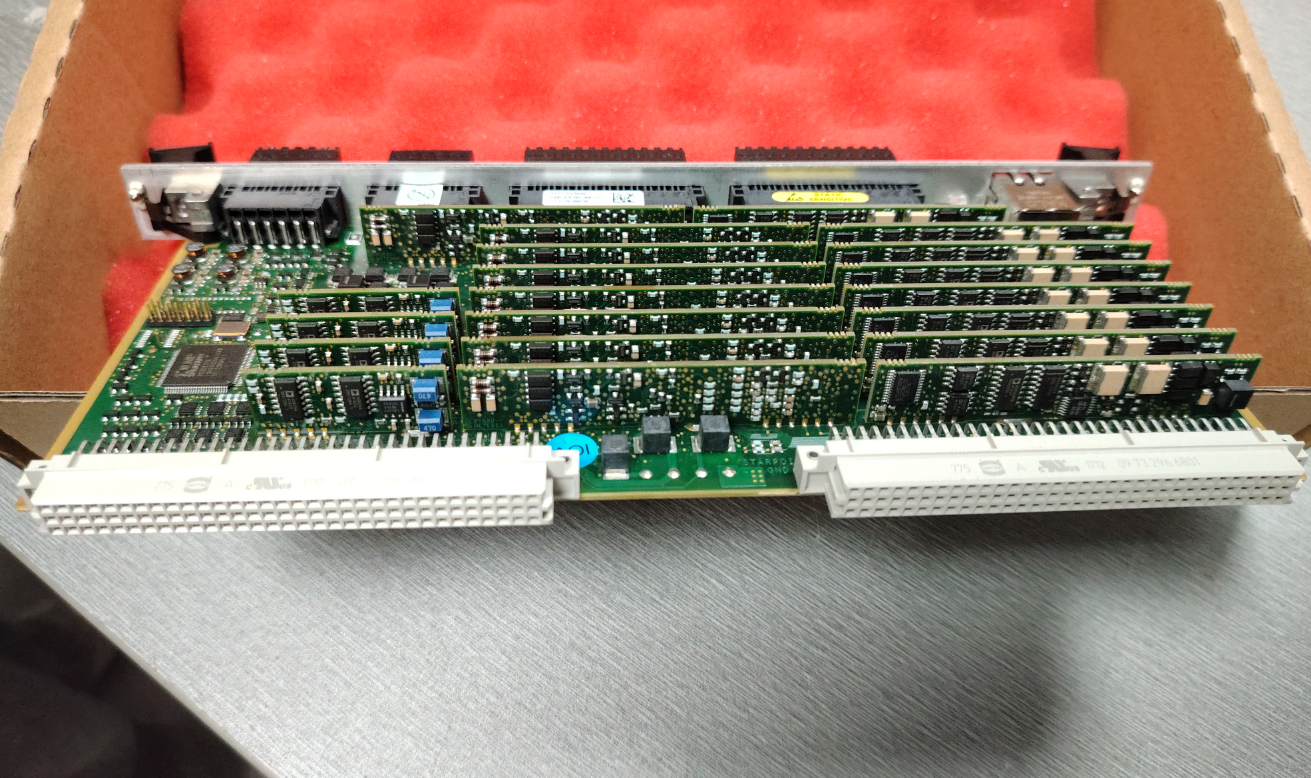

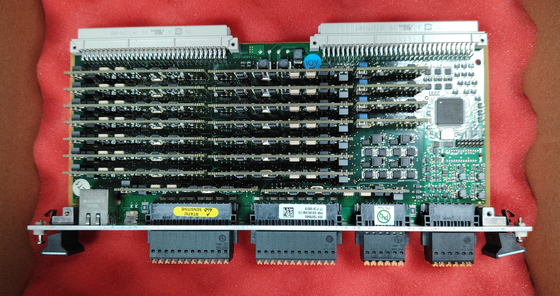

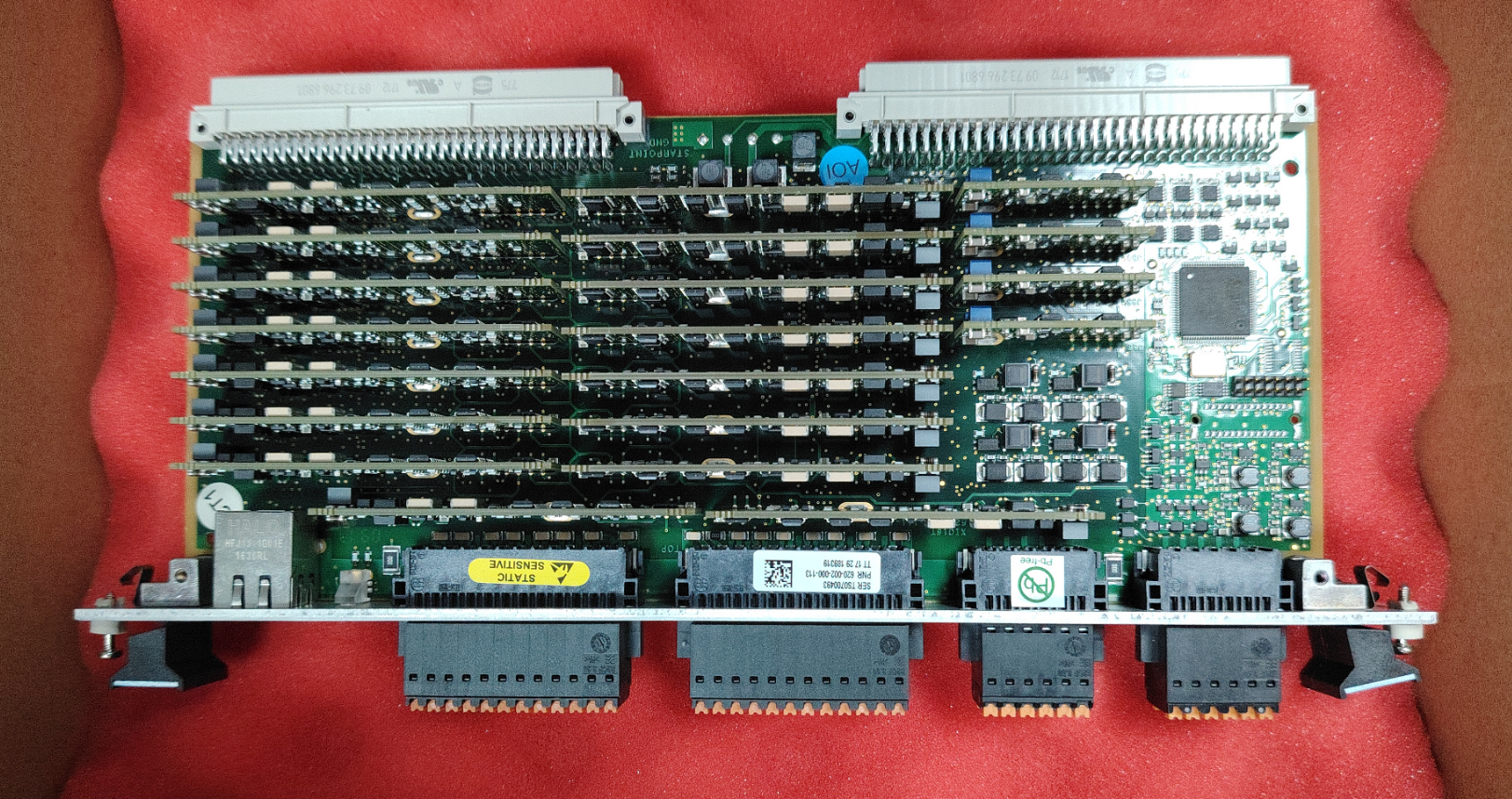

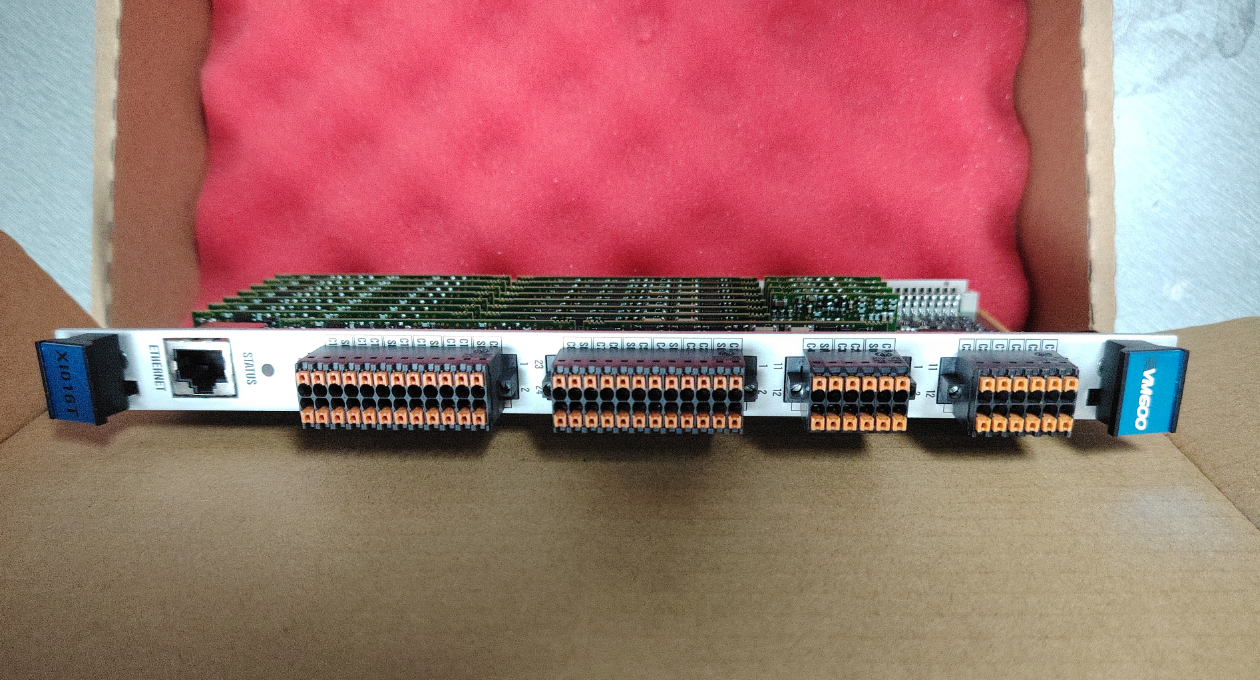

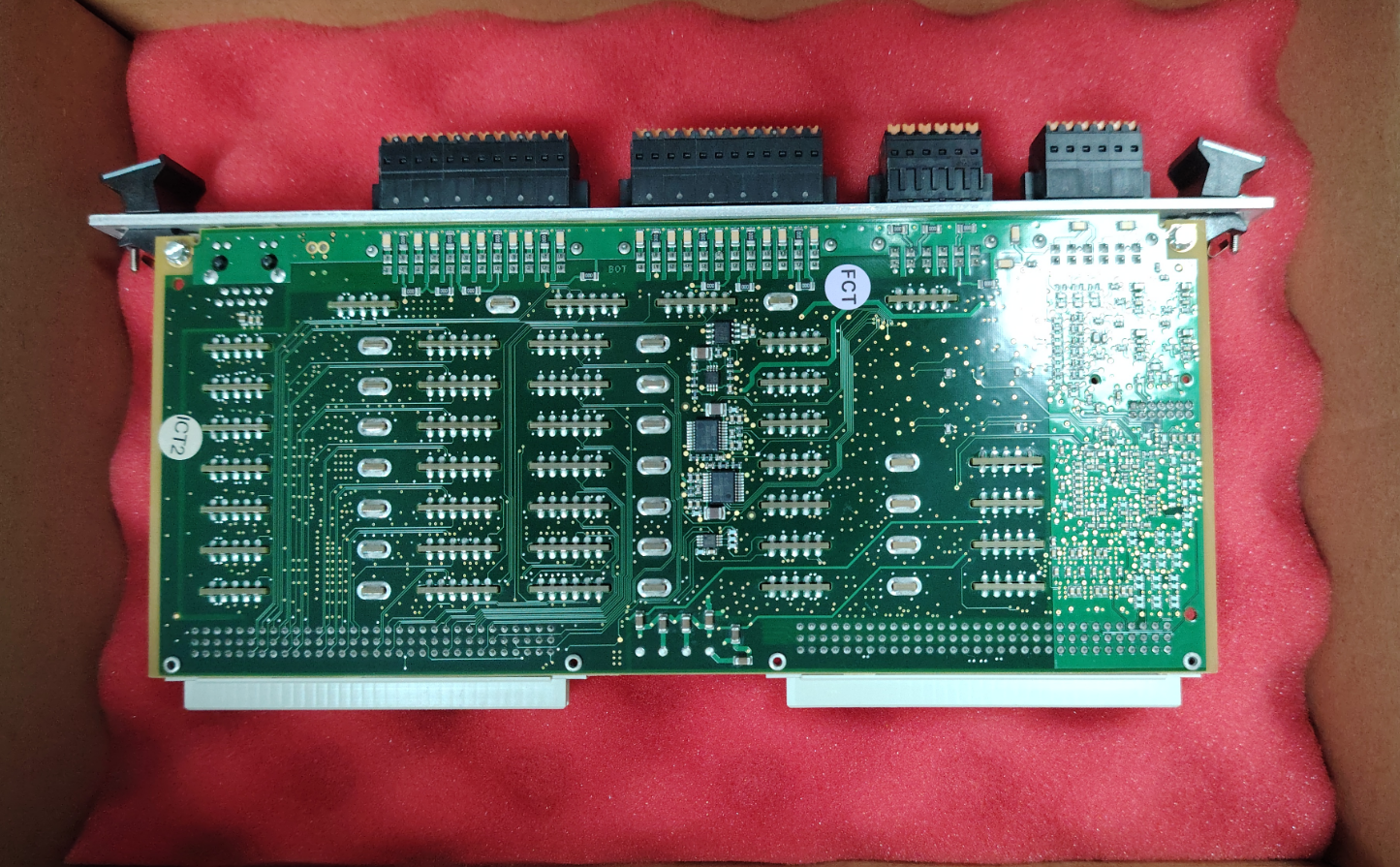

XIO16T 620-002-000-113
商品の詳細
| モジュール番号 | XIO16T | 注文番号 | 620-002-000-113 |
|---|---|---|---|
| 状態 | 在庫あり | 重さ | 1KG |
| リードタイム | 3～5営業日 | ブランド | 他の |
| 起源 | 中国 | 販売価格 | 2000ドル |
| ワレンティ | 1年 |
製品の説明
XIO16T 620-002-000-113
Product Overview
XIO16T 620-002-000-113 is a high-performance expansion input/output module that serves as the core interface component of a rack-mounted mechanical monitoring system. Acting as the system's signal hub, it receives signals from various field sensors—including vibration velocity, acceleration, displacement, and key-phase pulses—and converts them into digital signals for processing.
Key Features
- Number of dynamic channels: 16 channels
- Number of tachometer channels: 4 channels (configurable as DC inputs)
- RPM Measurement Range: 1 to 100,000 rpm
- RPM Measurement Resolution: 5 ns
- Input Voltage Range: 0.8 to 500 V peak-to-peak (0.3 Hz to 10 kHz)
- DC Component Range: -20 to +20 V
- Maximum Common-Mode Voltage: ±50 V
- Processing Outputs per Channel: Up to 20
- Operating Temperature: 0 to 65°C (32 to 149°F)
- Storage Temperature: -40 to 85°C (-40 to 185°F)
Technical Specifications
| Brand Name | Other |
|---|---|
| Model | XIO16T |
| Ordering Information | 620-002-000-113 |
| Catalog | Extended Vibration Monitoring Card |
| Gross Weight | 2.2 lbs / 35.2 oz / 1kg |
| Packing Size | 16cm x 16 cm x 12 cm |
| Country of Origin | China |
| HS Code | 8537101190 |
| Lead Time | In Stock |
| Shipping Port | Xiamen |
| Payment | T/T |
| Sales Price | $2000 |
| Warranty | 12 months |
| Courier Partners | DHL, UPS, TNT, FedEx and EMS |
Detailed Description
Used in conjunction with the XMV16 or XMC16 processing modules, this module handles sensor signal acquisition, analog signal conditioning, and external communication functions. Featuring a modular rack-mount design, it is installed at the rear of the rack, directly opposite the front-end processing modules. The XIO16T provides the system with a wide range of I/O interfaces and ensures the integrity and accuracy of monitoring data through its high-precision 24-bit data acquisition capability and high signal-to-noise ratio (SNR) processing.
Compatible Models
- XMV16 600-003: Vibration Monitoring Applications
- XMC16 601-052: Combustion monitoring applications
- XMV516 601-054: Vibration Monitoring
- ABE04x: standard rack
- ABE056: Ultra-thin Rack
Routine Maintenance Procedures
| Procedure | Description |
|---|---|
| LED Indicator Check | Periodically check the status of the module's LED indicators to confirm normal operation. The XMx16 module's front panel features STATUS, DATA, and ETHERNET ACT and LINK indicators; the XIO16T module features STATUS and ETHERNET indicators. |
| Cable Connection Inspection | Periodically inspect cable connections to prevent loosening or damage caused by vibration. |
| Self-Diagnostic Function | The module features a self-diagnostic function that can quickly pinpoint faults. If an anomaly is detected, perform a diagnostic check using the VibroSight® software first. |
Case Study
A large European power plant, which frequently faced unplanned gas turbine shutdowns due to delays in bearing wear detection, chose to upgrade its condition monitoring system. After installing the XIO16T 620-002-000-113, the system began collecting vibration data from 12 sensors on the gas turbine with an accuracy of 0.1% and a data transmission latency of ≤50 ms. This enabled early fault warning and significantly reduced unplanned outages.
Frequently Asked Questions
Can the XIO16T module operate independently?
No. The XIO16T is an interface module and must be paired with an XMV16 or XMC16 processing module; when installed at the rear of the rack, they form a complete "card pair."
Does the XIO16T support hot-swapping?
Yes. The module supports hot-swapping and removal while powered on, allowing for replacement while the system is running. However, for safety reasons, we still recommend disconnecting the power before performing these operations unless absolutely necessary.
What is the warranty period?
Standard industrial warranty: 12 months; with proper installation and no overloading, the product has a service life of 5-10 years.
